Features

• Matte Smooth Finish
• Hydrophobic Properties
• Premium quality wrap
• Heat Activated Self-Healing Topcoat
• Maximum Durability & Protection
• Scratch and stain resistant
• Durable and long-lasting
• Hassle-free installation and removal
• Resistant to yellowing and cracking
• Transparent, having superior clarity without the orange peel effect.

Specifications

• Available Sizes:
  • 5ft x 49ft, 33ft, 16ft, 10ft, and 3.3ft.
• Finish: Matte Smooth Finish.

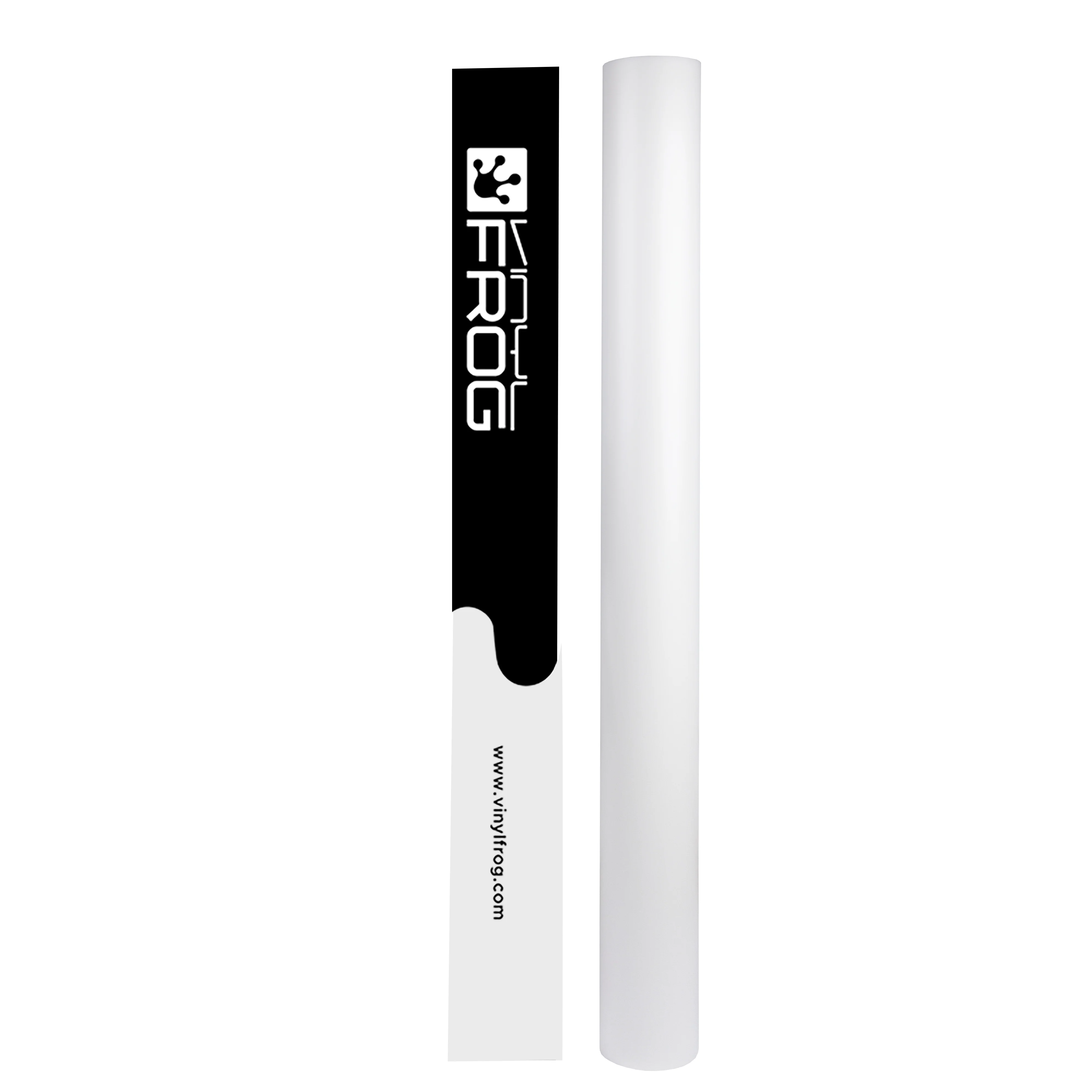

• Packaging: Roll in a sturdy box.

Product Structure

▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Self-healing Layer	um	10±2%	/
	Face Film	um	150±8	Termoplastic Polyurethane
	Acrylic Adhesive	um	28±2%	Solvent based
	Release liner	um	75±2%	Satin Semi-transparent
Surface		－	Matte &Transparent	Super Matte without Orange Peel
Width		m	1.52±0.01%	4.98ft
Length		m	15±1%	49.21ft

Physical Properties

Features		Test Method/Conditions	Results
Gloss(60°)		GB 8807	91.5
Initial Tack(gf/inch)		GB/T2792	1500
Holding Power(gf/inch)		GB/T2792,24h	1925
Self-healding Layer Elongation at break		GB/T 1040.1	70
Face Film Elongation at break		GB/T 1040.1	172
Tear Strength		GB/T529	78.7 KN/m
Tensile Strength		GB/T 1040.1	28 Mpa
100% Modulus		GB/T 1040.1	6.8 Mpa
Anti-yellowing		During durability period	Level B:ΔE< 2.5
Hydrophobic Property		/	R9-R10
Release Force(N/25mm)		paste on steel board, 90° 26℃ and 60%, GB2792	0.25
Humidity Resistance		120 hours exposure	No Detrimental Effect
Salt spray Resistance		120 hours exposure	No Detrimental Effect
Water Resistance		120 hours immersion	No Detrimental Effect
Chemical Resistance		1-hour diesel oil immersion, 4 hours antifreeze immersion	No Detrimental Effect
Aging Test 1		70℃ and 7 days	No adhesive residue with heat
Aging Test 2		90℃ and 7 days	No adhesive residue without heat
Application Termperature		/	+20℃ to +30℃
Service Temperature		/	+50℃ to +80℃
UV Resistance		/	90%
Light Transmission		/	90%
Recommended Shelf Life		72°F (22°C) and 50% RH	2 years
Durability		/	3 years
Time limits		Must use it within 3 months after receiving the wrap film	3 months

Recommendation

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, sprayer, towel, and installation liquid
Application method: Standard methods for Paint Protection Film. No overstretching & overheat and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

Durability

The durability is based on South China exposure conditions. Actual performance life will depend on substrate preparation, exposure conditions and maintenance of the marking. For instance, in areas of long high temperature exposure and in industrially polluted areas or high altitudes, exterior performance will be decreased.
